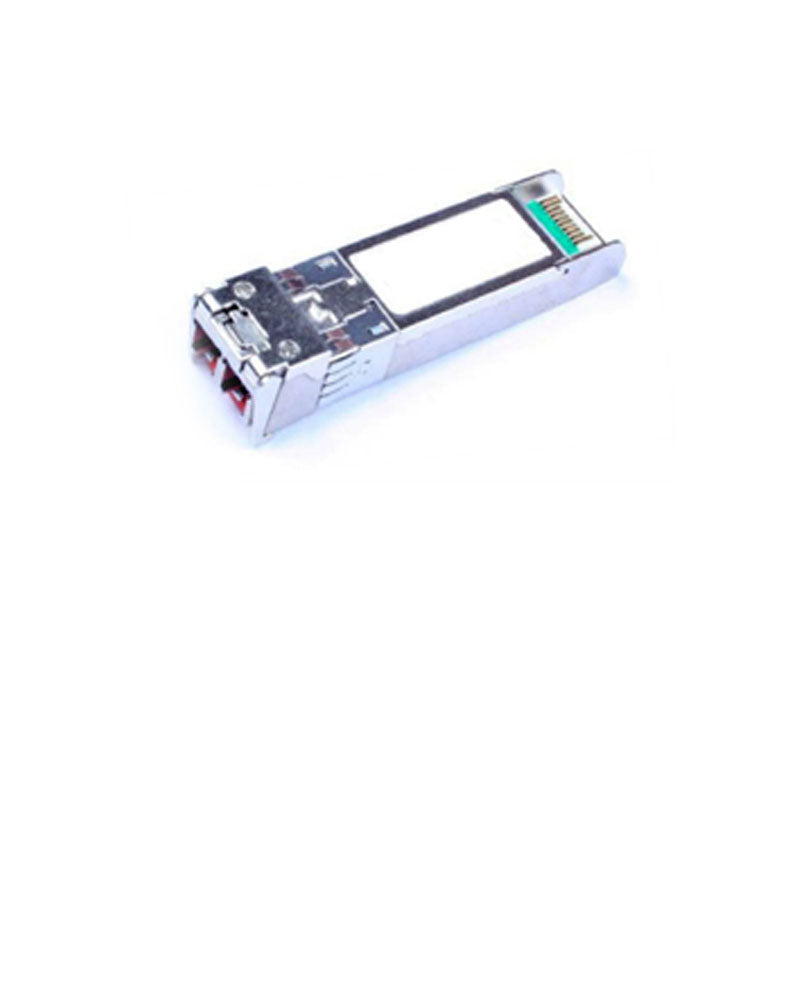

SFP+ 10G 60 Km BIDI

Availability: left in stock

SKU: RP12008

$100.00$110.00-9%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

• Up to 60Km with 9/125µm SMF
• Simplex LC connector
• RoHS Compliant
• Digital diagnostic monitor

Technical Data

Part Number	FR-SFP-10G-60-LC-BD
		Min.	Typ.	Max.
General Specifications
Data Rate	Gb/s	-	10	-
Operating Temperature	degC	0	-	70
Storage Temperature	degC	-40	-	85
Power Supply Current	mA	-	-	300
Power Supply Voltage	V	3.15	3.3	3.45
Supply Voltage	V	-0.5	-	4
Optical Specifications
Transmitter
Average Output Power	dBm	1	-	5
Optical Center Wavelength	nm	1260	1270	1280
Extinction Ratio	dB	3.5	-	-
Spectral Width(-20dB)	nm	-	-	1
Receiver
Optical Center Wavelength	nm	1320	1330	1340
Receiver Overload	dBm	-7	-	-
Receiver Sensitivity	dBm	-	-	-20
LOS De-Assert	dBm	-	-	-22
LOS Assert	dBm	-24	-	-
LOS De-Assert	dBm	-	-	-28
LOS Hysteresis	dB	0.5	-	4.5
Electrical Specifications
Transmitter
Input Differential Impedance	Ω	90	100	110
Single Ended Data Input Swing	mV	250	-	1200
Transmit Disable Voltage	V	2	-	Vcc
Receiver
Differential Data Output Swing	mV	250	-	800
Output Rise/Fall Time	ps	30	-	-
LOS Fault	V	2	-	VccHOST
