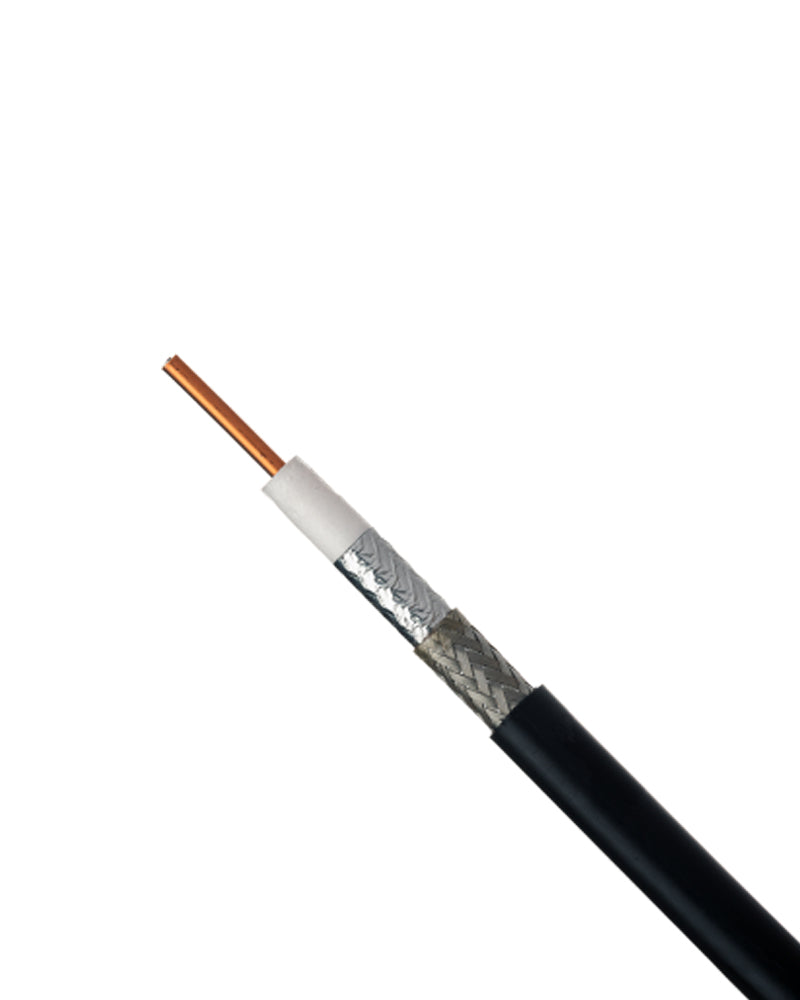

LMR 300 Cable

Availability: left in stock

$100.00$140.00-29%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

• Copper Feeder Cable	• UV-resistant, PE Jacket
• Low signal attenuation	• Low VSWR
• Cut off frequency is 24.5 GHz

Technical Data

Electrical Specification
Frequency Range, MHz	DC-3000
Impedance, Ohm	50+/-3
Inner conductor Resistance @ 20˚C, Ohm/km	7.0
Outer Conductor Resistance @ 20˚C, Ohm/km	7.3
Velocity of Propagation, %	85
Capacitance, nf/km	78.4
Construction
Conductor	CCA
Conductor Dia. (mm)	1.78+/-0.05
Dielectric	Foam PE
Dielectric Dia. (mm)	4.83+/-0.05
Inner shield	APA Tape
Outer shield	Tinned Copper Braid
Jacket	PE Black
Outer Dia. (±0.20mm)	7.62+/-0.10
Attenuation
Frequency, MHz	dB /100m
30	3.5
50	4.5
150	7.9
220	9.6
450	13.8
900	19.9
1500	26.0
1800	28.7
2000	30.0
2500	34.2
