CAT6 SFTP Cable 23AWG ATC Wire Outdoor

Availability: left in stock

SKU: GR10003-2

$120.00$110.00--9%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

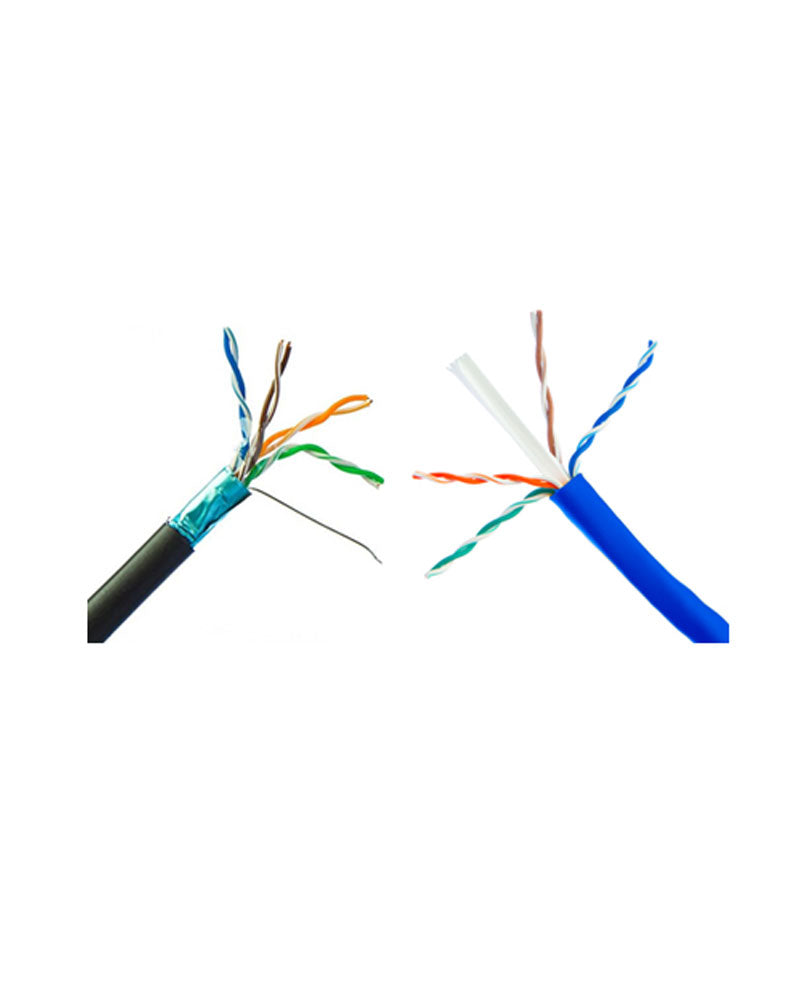

CAT6 SFTP Cable -23AWG

Part No.			GR10003
Specifications
Conductor	Material	-	Annealed Bare copper
	Conductor Dia.	AWG/mm	23AWG / 0.555 ± 0.020
	Conductor Elongation	%(min)	18
nsulation	Material	--	Polyethylene
Twisting	No of Pairs	Nos	4
Twisting	Direction	-	R/H
Laying (Dummy)	No of Pair	-	4
	Direction	-	L/H
	Cross Filler	-	PE Star Shaped
	Outer Layer	Nos	4
Tapping	Material	-	Polyester Tape
Tapping	Coverage	%	100
Screening	Material	-	Almylar Tape
Screening	Coverage	%	100
Braiding	Material	-	ATC
Braiding	Braiding Coverage	%	70
Outer Sheath	Material	-	PE (UV Resistant)
	Outer Dia	mm(Nom.)	6.80 ± 0.50
	Color	-	Black
Electrical parameters	Conductor resistance- (max)	Ohm/Km at 20oC	93.5
	Mutual Capacitance	nF/100m	5.6 max.
	Operating Temperature	degC	-20 to +60
