- • Compact, Low Weight
- • Low PIM
- • High Reliability
Technical Data
|

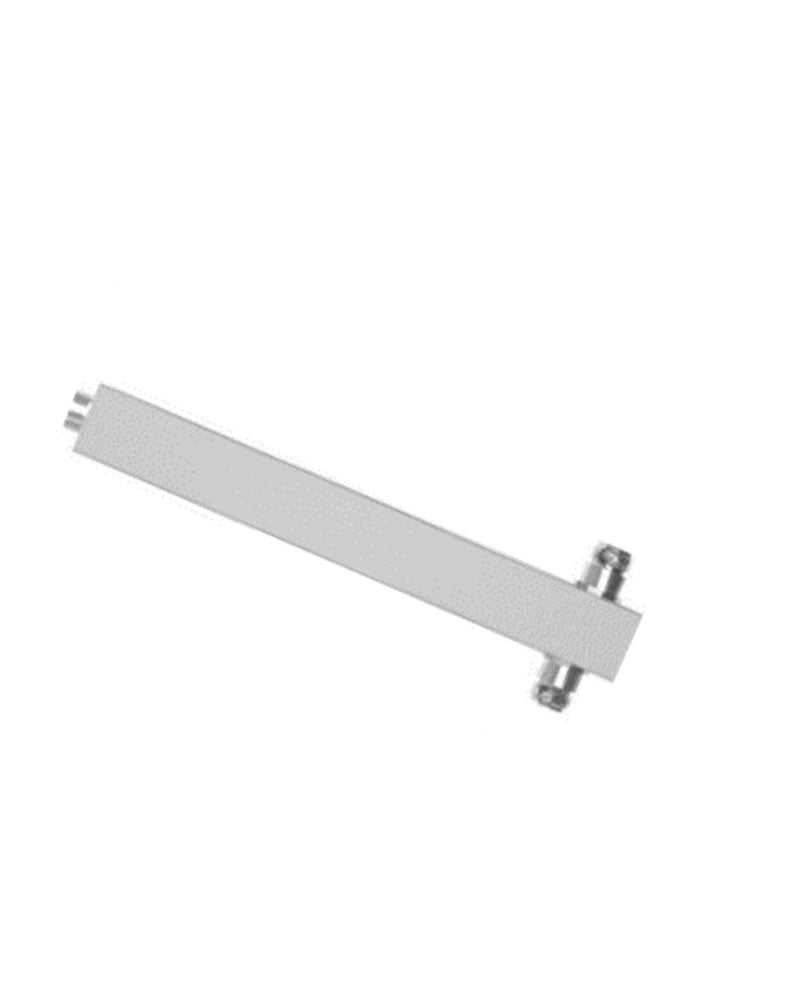

Part Number |
GR04002 |
|
||
|
Electrical Specifications |
||||
|
Frequency Range |
MHz |
380 – 470 |
||
|
Types |
|
2 Way |
||
|
Insertion Loss |
dB |
≤ 3.3 |
||
|
VSWR |
dB |
≤ 1.25 |
||
|
Intermodulation (3rd order) |
dBc |
≤ -150 @ 2 x 20 W |
||
|
Impedance |
W |
50 ± 3 |
||
|
Average Power Handling |
W |
300 |
||
|
Mechanical Specifications |
||||
|
Connectors Type |
|
N Female |
||
|
Dimensions (subject to change) |
mm |
200 × 25 × 25 (Excluding Connector) |
||
|
Net Weight (subject to change) |
gm |
330 ± 20 |
||
|
Material |
|
Aluminum |
||
|
Environmental Specifications |
||||
|
Operating Temperature |
°C |
-15 to +60 |
||
|
Relative Humidity |
% |
0 - 95 |
||
|
Application |
|
IP67 |
||
